第十六週進度

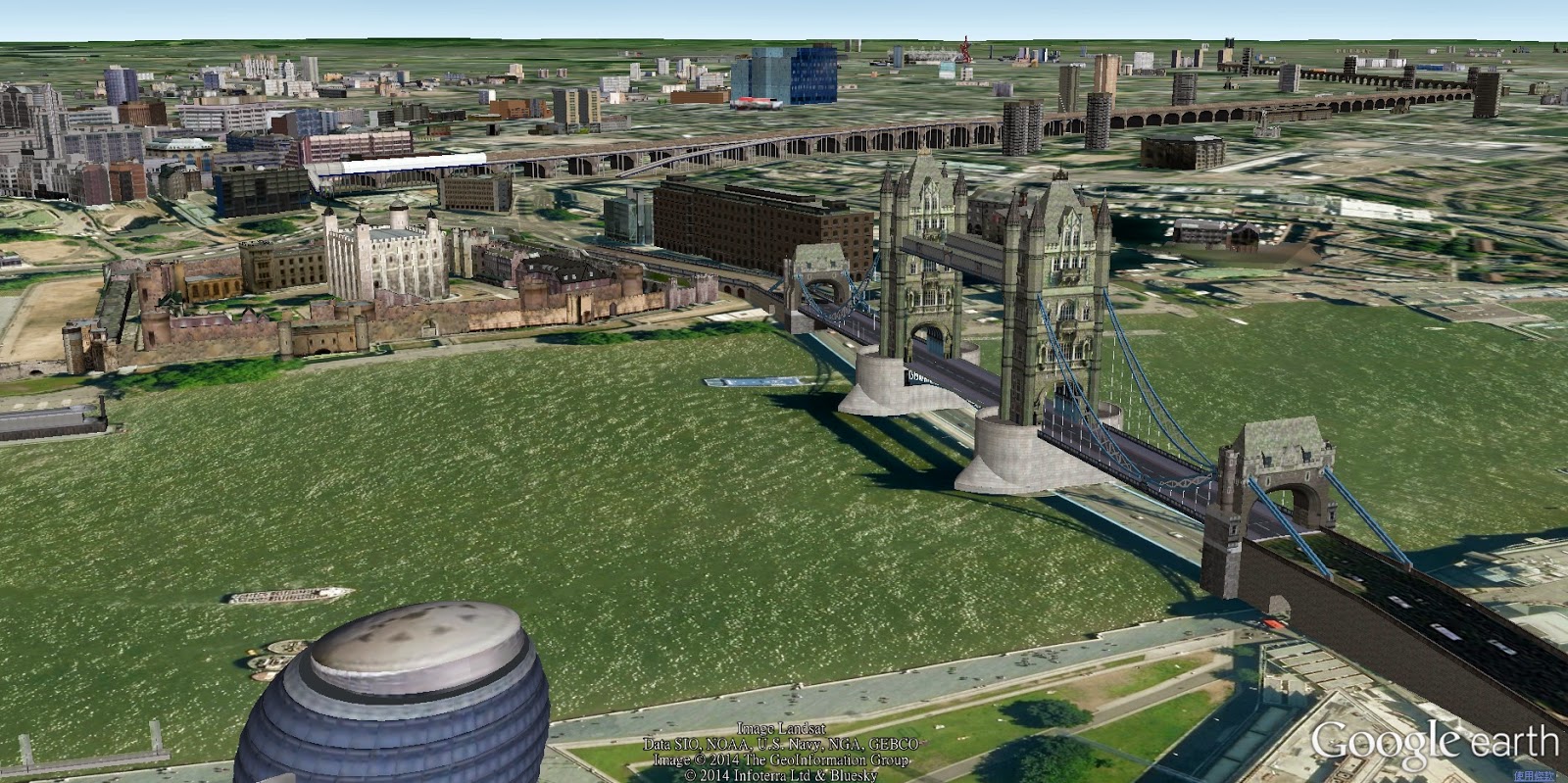

使用google earth的api在html上顯示地圖，精美的模組讓人更有飛行的真實感，並可使用經緯度來改變地圖位置，下面經緯度為倫敦

turnLeft = false;
turnRight = false;
tiltUp = false;
tiltDown = false;

moveForward = false;
moveBackward = false;
strafeLeft = false;
strafeRight = false;
altitudeUp = false;
altitudeDown = false;

INITIAL_CAMERA_ALTITUDE = 1.7; // Roughly 6 feet tall
cameraAltitude = INITIAL_CAMERA_ALTITUDE;
//----------------------------------------------------------------------------
// Utility Functions
//----------------------------------------------------------------------------

// Keep an angle in [-180,180]
function fixAngle(a) {
  while (a < -180) {
    a += 360;
  }
  while (a > 180) {
    a -= 360;
  }
  return a;
}

//----------------------------------------------------------------------------
// Input Handlers
//----------------------------------------------------------------------------

function keyDown(event) {
  if (!event) {
    event = window.event;
  }
  if (event.keyCode == 33) {  // Altitude Up
    altitudeUp = true;
    event.returnValue = false;
  } else if (event.keyCode == 34) {  // Altitude Down
    altitudeDown = true;
    event.returnValue = false;
  } else if (event.keyCode == 37) {  // Turn Left.
    turnLeft = true;
    event.returnValue = false;
  } else if (event.keyCode == 39) {  // Turn Right.
    turnRight = true;
    event.returnValue = false;
  } else if (event.keyCode == 38) {  // Tilt Up.
    tiltUp = true;
    event.returnValue = false;
  } else if (event.keyCode == 40) {  // Tilt Down.
    tiltDown = true;
    event.returnValue = false;
  } else if (event.keyCode == 65 ||
             event.keyCode == 97) {  // Strafe Left.
    strafeLeft = true;
    event.returnValue = false;
  } else if (event.keyCode == 68 ||
             event.keyCode == 100) {  // Strafe Right.
    strafeRight = true;
    event.returnValue = false;
  } else if (event.keyCode == 87 ||
             event.keyCode == 119) {  // Move Forward.
    moveForward = true;
    event.returnValue = false;
  } else if (event.keyCode == 83 ||
             event.keyCode == 115) {  // Move Forward.
    moveBackward = true;
  } else {
    return true;
  }
  return false;
}

function keyUp(event) {
  if (!event) {
    event = window.event;
  }
  if (event.keyCode == 33) {  // Altitude Up
    altitudeUp = false;
    event.returnValue = false;
  } else if (event.keyCode == 34) {  // Altitude Down
    altitudeDown = false;
    event.returnValue = false;
  } else if (event.keyCode == 37) {  // Left.
    turnLeft = false;
    event.returnValue = false;
  } else if (event.keyCode == 39) {  // Right.
    turnRight = false;
    event.returnValue = false;
  } else if (event.keyCode == 38) {  // Up.
    tiltUp = false;
    event.returnValue = false;
  } else if (event.keyCode == 40) {  // Down.
    tiltDown = false;
    event.returnValue = false;
  } else if (event.keyCode == 65 ||
             event.keyCode == 97) {  // Strafe Left.
    strafeLeft = false;
    event.returnValue = false;
  } else if (event.keyCode == 68 ||
             event.keyCode == 100) {  // Strafe Right.
    strafeRight = false;
    event.returnValue = false;
  } else if (event.keyCode == 87 ||
             event.keyCode == 119) {  // Move Forward.
    moveForward = false;
    event.returnValue = false;
  } else if (event.keyCode == 83 ||
             event.keyCode == 115) {  // Move Forward.
    moveBackward = false;
  }
  return false;
}



//----------------------------------------------------------------------------
// JSObject - FirstPersonCamera
//----------------------------------------------------------------------------

function FirstPersonCam() {
  var me = this;

  // The anchor point is where the camera is situated at. We store
  // the current position in lat, lon, altitude and in cartesian
  // coordinates.
  me.localAnchorLla = [51.506008, -0.075445, 0];
  me.localAnchorCartesian = V3.latLonAltToCartesian(me.localAnchorLla);

  // Heading, tilt angle is relative to local frame
  me.headingAngle = 0;
  me.tiltAngle = 0;

  // Initialize the time
  me.lastMillis = (new Date()).getTime();

  // Used for bounce.
  me.distanceTraveled = 0;

  // prevent mouse navigation in the plugin
  ge.getOptions().setMouseNavigationEnabled(false);

  // Updates should be called on frameend to help keep objects in sync.
  // GE does not propogate changes caused by KML objects until an
  // end of frame.
  google.earth.addEventListener(ge, "frameend",
                                function() { me.update(); });
}

FirstPersonCam.prototype.updateOrientation = function(dt) {
  var me = this;

  // Based on dt and input press, update turn angle.
  if (turnLeft || turnRight) {
    var turnSpeed = 60.0; // radians/sec
    if (turnLeft)
      turnSpeed *= -1.0;
    me.headingAngle += turnSpeed * dt * Math.PI / 180.0;
  }
  if (tiltUp || tiltDown) {
    var tiltSpeed = 60.0; // radians/sec
    if (tiltDown)
      tiltSpeed *= -1.0;
    me.tiltAngle = me.tiltAngle + tiltSpeed * dt * Math.PI / 180.0;
    // Clamp
    var tiltMax = 50.0 * Math.PI / 180.0;
    var tiltMin = -90.0 * Math.PI / 180.0;
    if (me.tiltAngle > tiltMax)
      me.tiltAngle = tiltMax;
    if (me.tiltAngle < tiltMin)
      me.tiltAngle = tiltMin;
  }
}

FirstPersonCam.prototype.updatePosition = function(dt) {
  var me = this;

  // Convert local lat/lon to a global matrix. The up vector is
  // vector = position - center of earth. And the right vector is a vector
  // pointing eastwards and the facing vector is pointing towards north.
  var localToGlobalFrame = M33.makeLocalToGlobalFrame(me.localAnchorLla);

  // Move in heading direction by rotating the facing vector around
  // the up vector, in the angle specified by the heading angle.
  // Strafing is similar, except it's aligned towards the right vec.
  var headingVec = V3.rotate(localToGlobalFrame[1], localToGlobalFrame[2],
                             -me.headingAngle);
  var rightVec = V3.rotate(localToGlobalFrame[0], localToGlobalFrame[2],
                             -me.headingAngle);
  // Calculate strafe/forwards
  var strafe = 0;
  if (strafeLeft || strafeRight) {
    var strafeVelocity = 30;
    if (strafeLeft)
      strafeVelocity *= -1;
    strafe = strafeVelocity * dt;
  }
  var forward = 0;
  if (moveForward || moveBackward) {
    var forwardVelocity = 100;
    if (moveBackward)
      forwardVelocity *= -1;
    forward = forwardVelocity * dt;
  }
  if (altitudeUp) {
    cameraAltitude += 1.0;
  } else if (altitudeDown) {
    cameraAltitude -= 1.0;
  }
  cameraAltitude = Math.max(0, cameraAltitude);

  me.distanceTraveled += forward;

  // Add the change in position due to forward velocity and strafe velocity
  me.localAnchorCartesian = V3.add(me.localAnchorCartesian,
                                   V3.scale(rightVec, strafe));
  me.localAnchorCartesian = V3.add(me.localAnchorCartesian,
                                   V3.scale(headingVec, forward));

  // Convert cartesian to Lat Lon Altitude for camera setup later on.
  me.localAnchorLla = V3.cartesianToLatLonAlt(me.localAnchorCartesian);
}

FirstPersonCam.prototype.updateCamera = function() {
  var me = this;

  var lla = me.localAnchorLla;
  lla[2] = ge.getGlobe().getGroundAltitude(lla[0], lla[1]);

  // Will put in a bit of a stride if the camera is at or below 1.7 meters
  var bounce = 0;
  if (cameraAltitude <= INITIAL_CAMERA_ALTITUDE /* 1.7 */) {
    bounce = 1.5 * Math.abs(Math.sin(4 * me.distanceTraveled *
                                     Math.PI / 180));
  }

  // Update camera position. Note that tilt at 0 is facing directly downwards.
  //  We add 90 such that 90 degrees is facing forwards.
  var la = ge.createLookAt('');
  la.set(me.localAnchorLla[0], me.localAnchorLla[1],
         cameraAltitude + bounce,
         ge.ALTITUDE_RELATIVE_TO_SEA_FLOOR,
         fixAngle(me.headingAngle * 180 / Math.PI), /* heading */
         me.tiltAngle * 180 / Math.PI + 90, /* tilt */
         0 /* altitude is constant */
         );
  ge.getView().setAbstractView(la);
};

FirstPersonCam.prototype.update = function() {
  var me = this;

  ge.getWindow().blur();

  // Update delta time (dt in seconds)
  var now = (new Date()).getTime();
  var dt = (now - me.lastMillis) / 1000.0;
  if (dt > 0.25) {
    dt = 0.25;
  }
  me.lastMillis = now;

  // Update orientation and then position  of camera based
  // on user input
  me.updateOrientation(dt);
  me.updatePosition(dt);

  // Update camera
  me.updateCamera();
};
